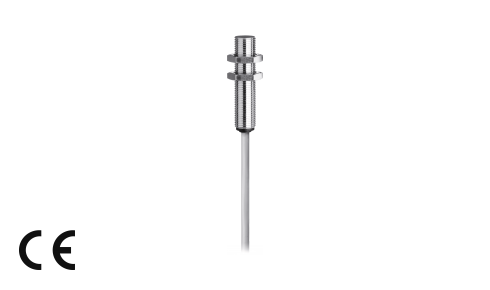

DCC 12 M 04B PSLK

TECHNICAL INFORMATION (typ.)+20°C, 24V DC
Operating principle Inductive
Evaluation digital
Size M12 x 1 (thread)
Design screw
Mounting flush
Characteristics increased operating distance
Operating distance 4 mm
Standardized measuring plate 12 x 12 x 1 mm
Service voltage 10 ... 30 V DC
No-load current < 10 mA
Switching output pnp, 200 mA, NO
Switching hysteresis 10 %
Shock-/vibration load 10 ... 55 Hz / 1,0 mm / 30 g
Voltage drop < 2,0 V
Switching frequency 2000 Hz
Ambient temperature, operation -25 … +70 °C
Insulation voltage endurance 500 V
Protection class IP 67
Casing material brass
Material PVC (Cable)
Connection Cable, 2,0 m
